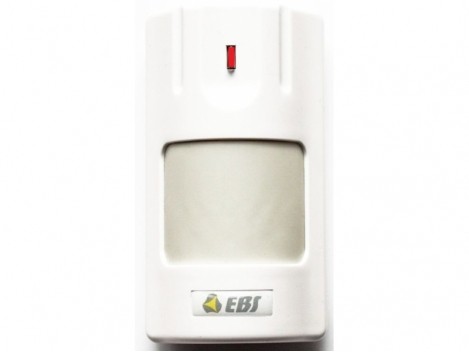

Main features
 Dual passive infrared detection technology
 Temperature compensation
 Supervisory signal every 15 minute
 Low power consumption
 Control battery status (low power signal)
 Battery lifetime 2-3 years*
 Max transmission distance 300m (open air)
* battery lifetime is approximate and depends on the
working conditions of the detector

Specifications
 Start time: 120s
 Working temperature: 0~55°C
 Storage temperature: 20~60°C
 Dimensions: 105x58x38mm
 Installation height: 1.8~2.5m
 Transmission frequency: 433.92MHz
 Operation Voltage: 3V
 Standby Current: 40uA
 Alarm current: 22mA
 Battery: lithium, CR123

Programming mode
Open detector cover. Set wireless control panel into learning mode and when it will be waiting for wireless detector push anti-tamper
switch.
Working modes
Normal mode – pin S5 shorted. First detection will trigger instant alarm. Every next alarm can be triggered after 180s delay.
Testing mode – pin S5 open. Mode for detector installation. Alarm is triggered for every detection.
Sensitivity adjustment
High sensitivity – S1 open, S2 shorted
Normal sensitivity – S1 shorted, S2 shorted
Low sensitivity – S1 open, S2 open
Very low sensitivity – S1 shorted, S2 open
LED Indicator
ON – pins JP1 shorted. Blinking on alarm with frequency 0.5 Hz
OFF – pins JP1 open (lower current consumption)

WARNING!
 Wrong battery installation may damage detector.
 Do not open jumper S3 – RF channel configuration. Jumper must be shorted.
 Detector installation against the window, against the light, near the large metal object, high-intensity magnetic
fields, high power device or heating source will cause a working noise.
 Do not shield.
 Install in the dry place.
 Make sure the place you choose for installation allow free detector-receiver communication.
