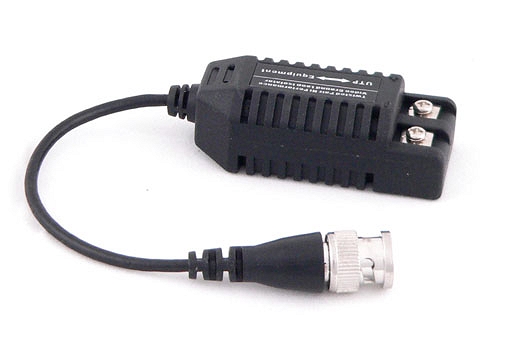

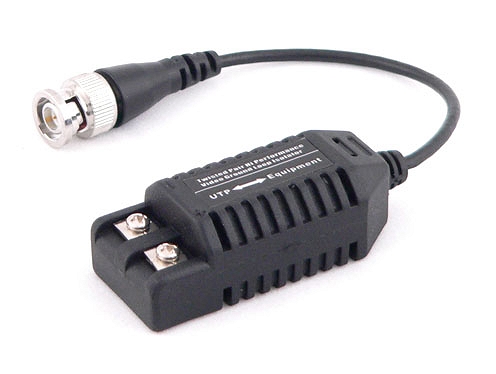

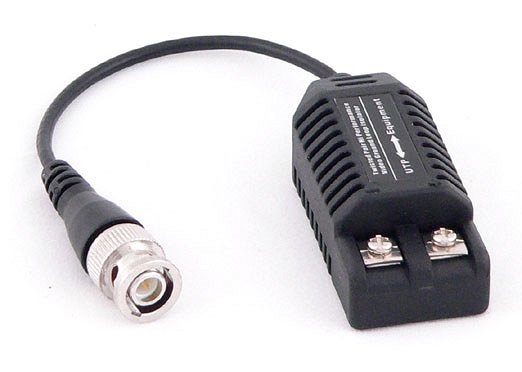

TVG300 – Protecție la descărcări electrice Analogic – 1 canal (cablu UTP)

High quality groud loop separator with UTP balun
Ground loop video separator, with filter. Male BNC / Female BNC. Video signal and ground separation. BNC-UTP connector. Built-in interference suppressor. Doesn’t require power supply. Surge protector up to 1.5Kv. Small size.

Categorie:

Descriere

Technical Specifications:
Connection method Male BNC connector + screw terminal
Mode of operation Passive – doesn’t require power
Effectiveness of elimination loop masses High
Attenuation Low (0~-3dB)
Frequency range Wide (20Hz~10MHz)
Impedance of coaxial cable 75Ohm
Impedance of twisted pair 100Ohm
Effectiveness of insulation 600VDC
Surge protection 12Vrms
Built-in suppression filter
 Yes
Dimension 72 x 28 x 22 (mm)
