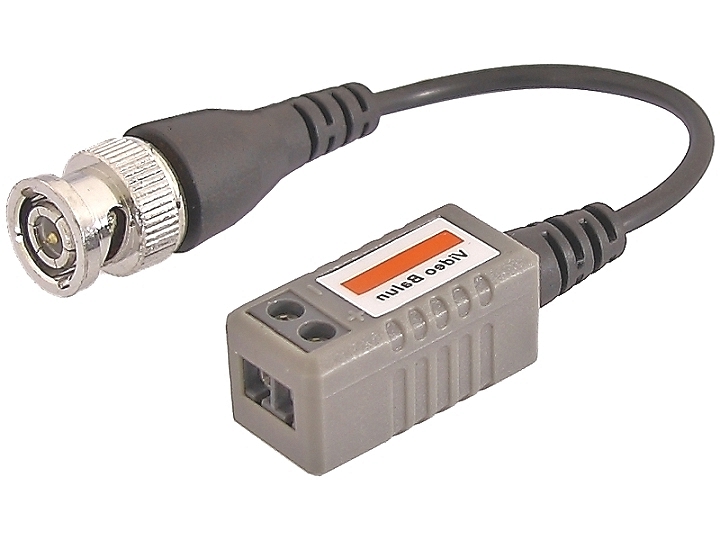

TR101A is passive Video transformer with BNC connector, which is designed to transmitting Video signal by using UTP twisted pair of 5 category. The device matches impedance of coaxial cable (75Ω) to impedance of symmetrica cable, which provide signal transmission up to 400m with passive transmitter / receiver or 1200m with active receiver.

TR101A in compared of other devices on market has high-frequency filter. By using this filter, Video signal, which is sending on long distance has better quality.

The passive Video transformer has small size and it’s ideal solutions to CCTV systems and video conferencing, Video distribution, P / T / Z control of signals, PC multimedia.

Technical specification:
Signal transmission	UTP twisted pair / coaxial cable
Range (UTP)	400m color 600m B/W
Video channels	1
Voltage range	75Ω (CVBS)
Suppression	-0,5dB
Range of Video band	0 – 50Mhz
Signal / noise interval	60dB
Impedance of coaxial cable	75Ω
Impedance UTP twisted pair	100Ω
Work temperature	-10ºC +70ºC
