SUG-BOX1 – Protecție la descărcări electrice Analogic – 1 canal (cablu coaxial)

Surge protection of camera in Hermetic housting

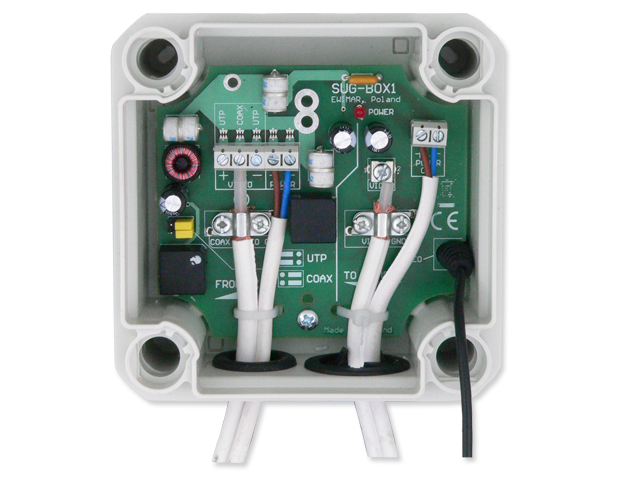

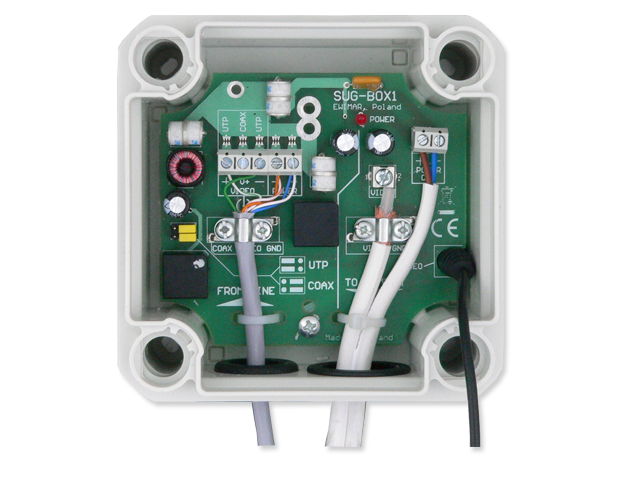

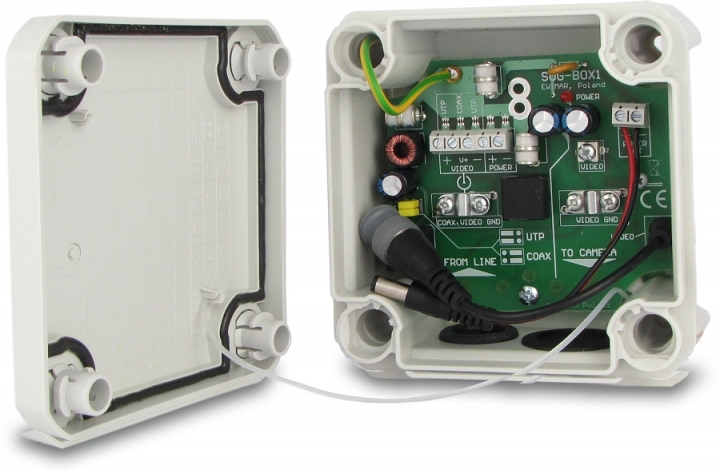

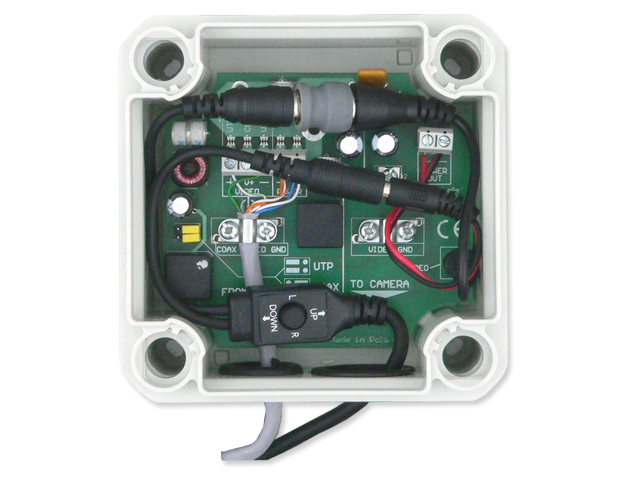

Universal Input and surge protection for coaxial cable and UTP. Built-in ground loop video separator. Surge protection: 4kV / 10kA (8/20us) for Video and power line 12V. Possible adjustment product for 24VAC. Set of connectors for easier connecting. High quality IP66 housting, with possible montage with U-BOX on pole. Discharges electrical charge to ground.

Categorie:

Descriere

Technical specyfication Video:
Impedancce for coaxial cable
 75 Ohm
Impedance for twisted pair UTP
 100 Ohm
Frequency response
 10 MHz
Attenuation 0,6dB
Separation Video 600VDC for twisted pair UTP and coaxial cable
Surge protection
 3 level –air ionizing, gas tube, transcient bridge
Capacity circuit protect
 No more them 10pF
Current protection
 Gas tube: 2 x 10kA @ 8/20uS, transcient bridge 57A
Voltage protection
 Gas tube: 75V line-ground, transcient bridge 8,2V line-line
Connector input
 Screw
Connector output
 Screw, BNC – male



Technical specyfication track power:
Lightning protection
 3 level –air ionizing, gas tube, transcient bridge
Current protection
 Gas tube: 2 x 10kA @ 8/20uS, Transil 100A
Voltage protection
 gas tube: 75V line-ground, transcient bridge 15V line-line
Fuse
 Automatic, 750mA



Specification:

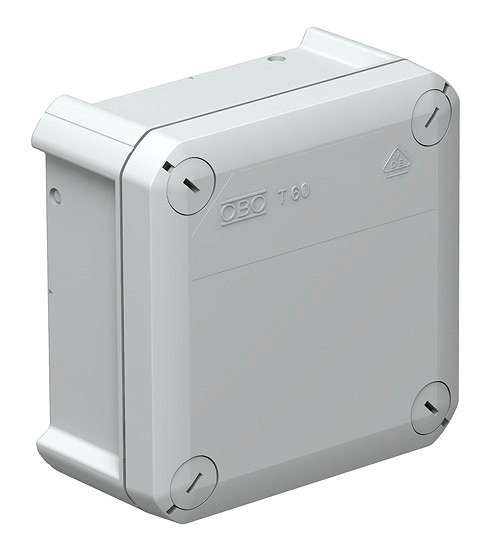

Waterproof class
 IP66 – side and top

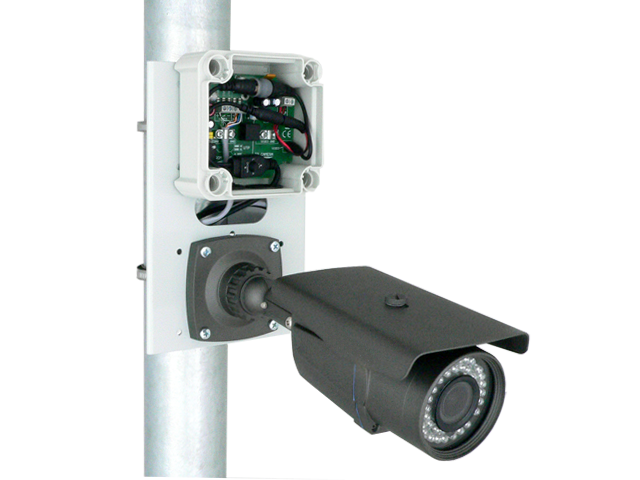

Mount
 wall,  U-BOX1
Working temperature
 -30~60˚C
Dimension 114 x 114 x 57 (mm)
