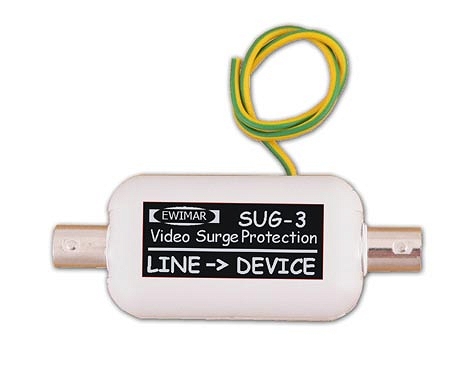

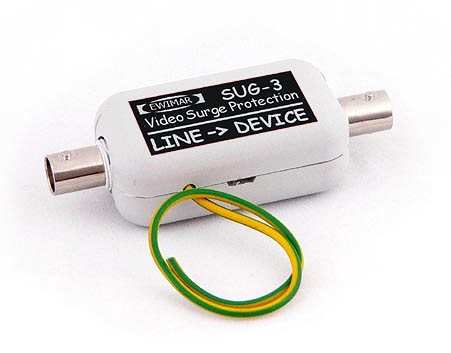

SUG-3/3F – Protecție la descărcări electrice Analogic – 1 canal (cablu coaxial)

Surge protection of camera for coaxial cabel
Surge protection for coaxial cabme. 3-levels surge protection. Discharges electrical charge to ground. Fast and easy montage. Input: BNC – SUG-3. Output: BNC – SUG-3. Output: Free BNC – SUG-3F

Categorie:

Descriere

Technical specification:
Impedance for coaxial cable
 75 Ohm
Frequency range 10 MHz
Attenuation 0,5dB
Stage of surge protection
 3 – PCB electrodes, gas tube, transient diode
Circuit protection No more than 30pF
Discharge current 10kA gas tube,  57A transient
Discharge voltage 75V gas tube, 8.2 V transient
