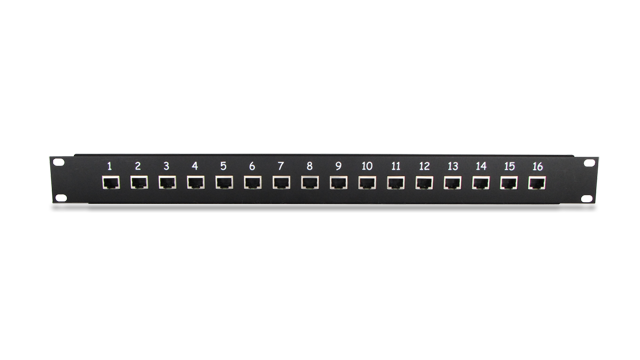

PTU-16R-ECO/Cat.6 – Protecție la descărcări electrice IP – 16 canale

16-channel LAN security panel with surge protection ECONOMICAL series
Mount in RACK 19” (1U). 16 LAN channels. Wall-cailing bracket. Surge protection of 16 IP channels. 2-level surge protection. Compatible with UTP 6 cat. Proffesional Krone connectors for input, RJ-45 connector for output. Indoor use prefer.

Categorie:

Descriere

Specifications:

PARAMETER NAME VALUE
Number of channels 16
Input connector (line) Krone
Output connector RJ-45
Levels of protection 2 (air spark gap, transil bridge)
Output ground Yes – for magnetos ionizing
Capacity line to line 6-8pF @ 0V, 1Mhz
Capacity line to ground < 1pF
Protection level line to line 6V-1kV, 20V @ 100A , 8/20uS
Maximum Uc voltage 6,8V
Maximum power 8 / 20us (line to line) 2kW
Fixing Rack 19″ 1U, wall
Additional options Replaceable modules of different types, top cover
Dimensions 480 x 41 x 130 (mm)
Operating temperature -30~+60°C
