LST-8R-FPS – Protecție la descărcări electrice Analogic – 8 canale (UTP BALUN)

Video separator, surge protector with utp balun POWER SUPPORT

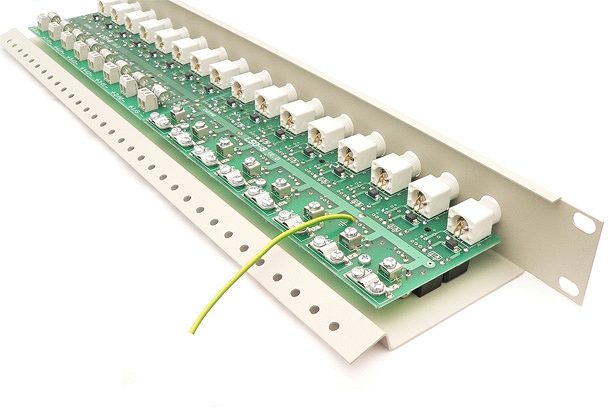

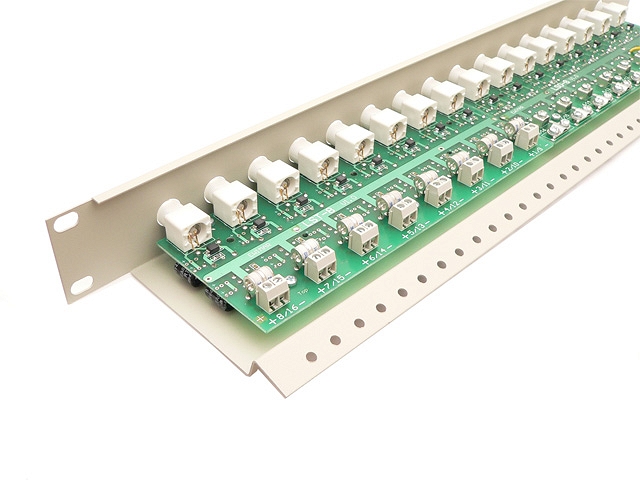

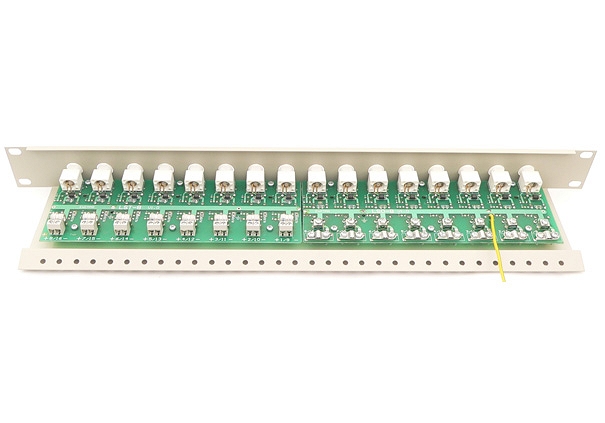

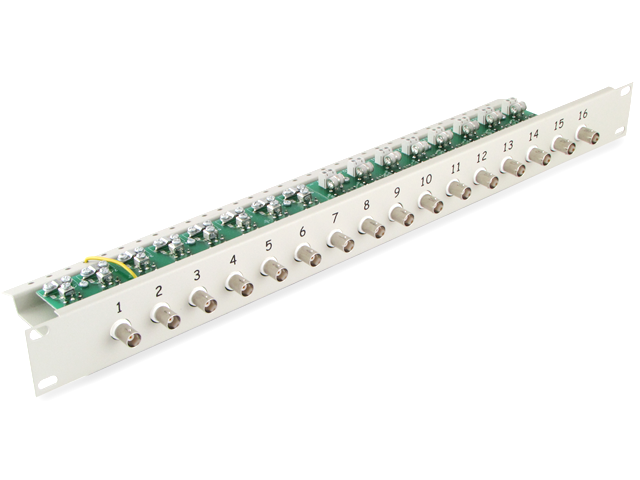

Rack mount 1U housing. 8 Video channels. Build in Video balun for each channel. Ground loop separation for all channels. 8 channels power distributor 12V or 24V. Visual and sound short circuit indication. 3-stage surge protection. Avalible in black color. Special holes for cable tie. Precision BNC connectors.

Categorie:

Descriere

Technical Specifications:
Video channels
 8 for coaxial cable
8 for UTP twisted pair (built-in converter)

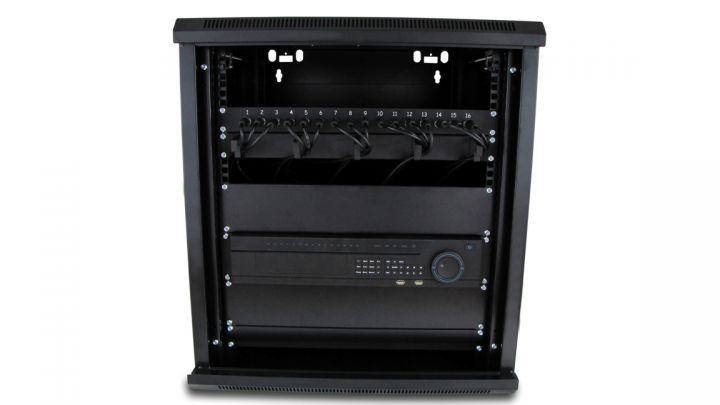

Method of attachment Rack 19″ cabinet
Impedance for coaxial cable 75 Ohm
Impedance for UTP twisted pair 100 Ohm
Maximum cable length 300m for color video signal, 500m for black-white video signal
Frequency range 20Hz~10MHz
Separation 600V (minimum)
Insulation resistance 100MOhm
Attenuation 0.5dB
Stages of surge protection PCB electrodes, gas tube, transient diode
Discharge voltage 75V, Transil 8,2V
Discharge current 2 x 10kA, Transil: 57A
Capacity protection circuit No more than 50pF
