LST-16R-FPS – Protecție la descărcări electrice Analogic – 16 canale (UTP BALUN)

16-channels power supply splitter with separated video UTP balun POWER SUPPORT

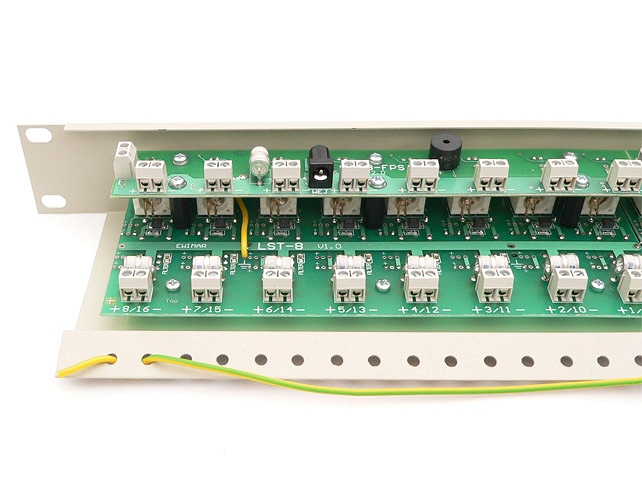

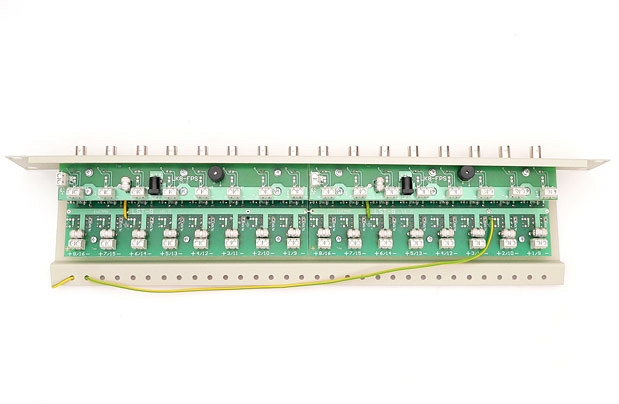

Rack mount 1U housing. 16 Video channels. Build in Video balun for each channel. Ground loop separation for all channels. 16 channels power distributor 12V or 24V. Visual and sound short circuit indication. 3-stage surge protection. Special holes for cable tie. Precision BNC connectors.

Categorie:

Descriere

Technical Specifications:
Video channels
 16 for UTP twisted pair(built-in UTP transfomer)
Power channels
 16
Method of attachment Rack 19″ cabinet
Impedance for coaxial cable 75 Ohm
Impedance for UTP twisted pair 100 Ohm
Maximum cable length 300m for color video signal, 500m for black-white video signal
Frequency range 20Hz~10MHz
Separation 600V (minimalna)
Insulation resistance 100MOhm
Attenuation No more than 0.5dB
Stages of surge protection 3 – PCB electrodes, gas tube, transient diode
Discharge voltage 75V, Transil 8,2V
Discharge current 2 x 10kA, Transil: 57A
Capacity protection circuit No more than 50pF
