LSO-8R – Protecție la descărcări electrice Analogic – 8 canale (cablu coaxial)

8 channels, surge protector, with galvanic isolator for coaxial cable
Rack mount 1U housing. 8 Video channels. Ground loop separation for all channels. Easy to coaxial cable connection. 3-stage surge protection. Special holes for cable tie. Precision BNC connectors.

Categorie:

Descriere

Tecnical Specifications:
Video channels
 8

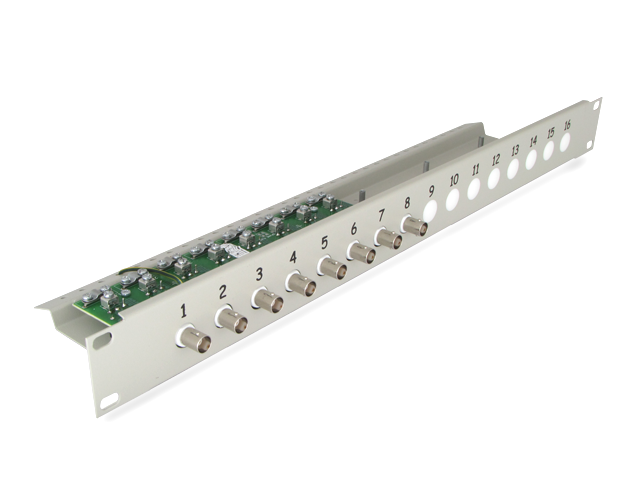

Method of attachment RACK 19”, 1U
Impedance for coaxial cable
 75Ohm
Maximum cable lenght
 300m for color video signal, 500m for black-white video signal
Frequency range 20Hz~10MHz
Separation 600V
Insulation resistance
 100MOhm
Attenuation
 0,5dB
Stages of surge protection

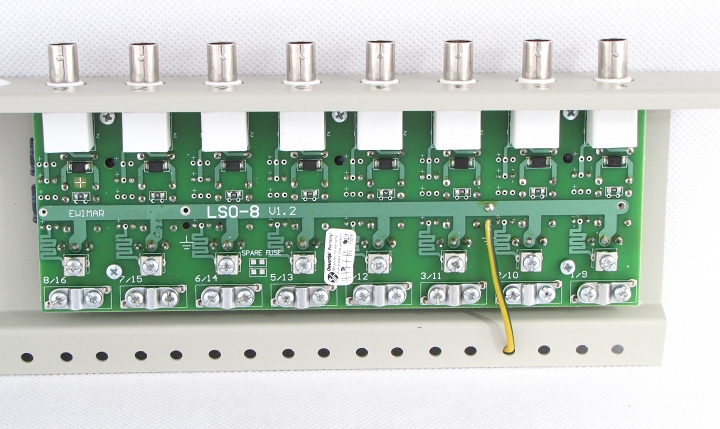

 PCB electrodes, gas tube, transient diode
Discharge voltage
 75V, transil 8,2V
Discharge current
 2x 10kA, transil: 57A
Capacity protection circuit
 No more than 50pF
