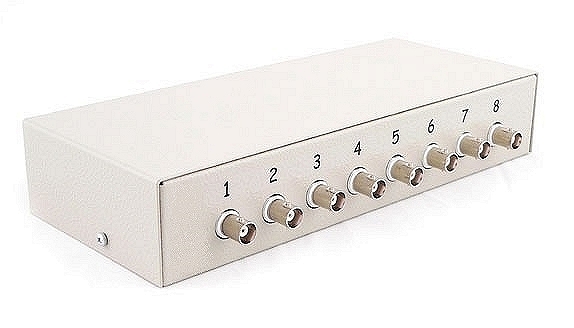

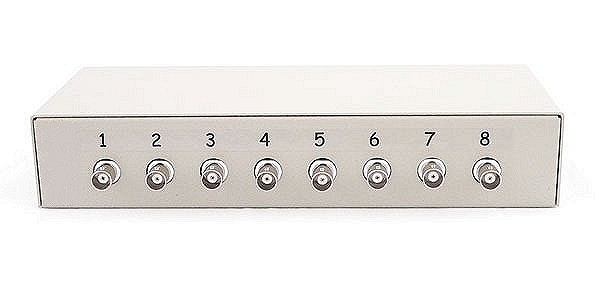

LSO-8R-FPS – Protecție la descărcări electrice Analogic – 8 canale (cablu coaxial)

CCTV patchpanel, video separator with power distributor for coaxial cable
Rack mount 1U housing, 19’. 8 Video channels. Ground loop separation for all channels. Easy to coaxial cable connection. 3-stage surge protection. 8 channels power distributor 12V or 24V. Visual and sound short circuit indication. Special holes for cable tie. Precision BNC connectors. Resetable fuses for power distributor. Built-in automatic protectors.

Categorie:

Descriere

Tecnical Specifications:
Video channels
 8
Method of attachment Standalone housing
Impedance for coaxial cable
 75Ohm
Maximum cable lenght
 300m for color video signal, 500m for black-white video signal
Frequency range 20Hz~10MHz
Separation 600V
Insulation resistance
 100MOhm
Attenuation
 0,5dB
Stages of surge protection
 PCB electrodes, gas tube, transient diode
Discharge voltage
 75V, transil 8,2V
Discharge current
 2x 10kA, transil: 57A
Capacity protection circuit
 No more than 50pF
Power distribution for 8 camera
