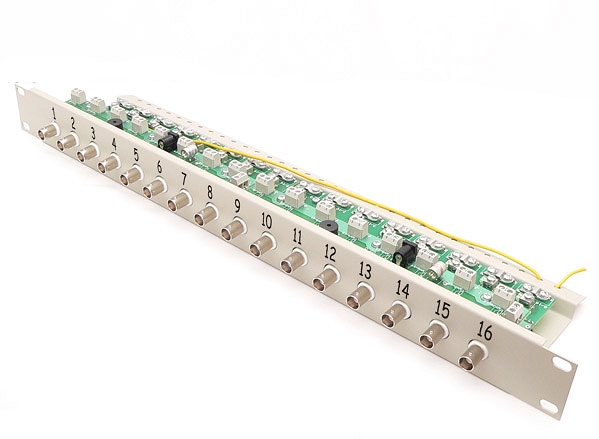

LSO-16-FPS – Protecție la descărcări electrice Analogic – 16 canale (cablu coaxial)

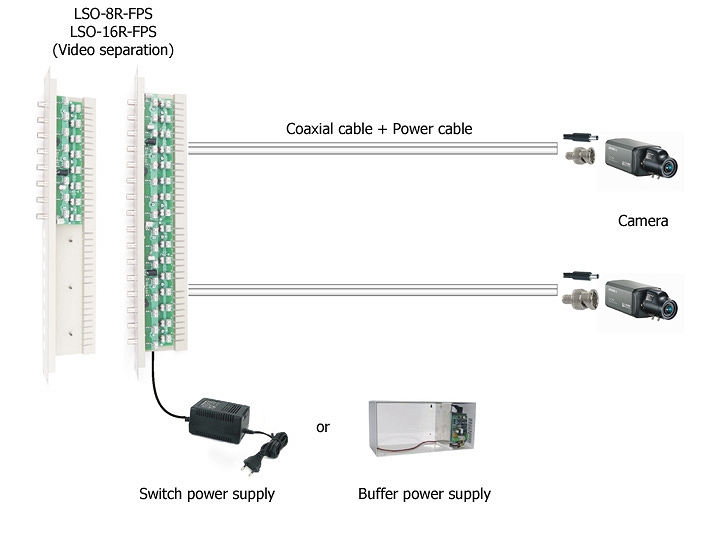

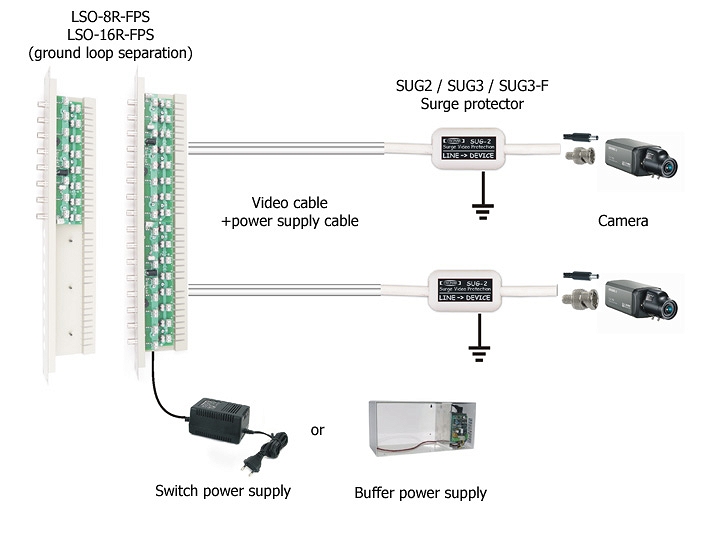

16-channels Ground Loop Video Separator with surge protection for coaxial cable POWER SUPPORT

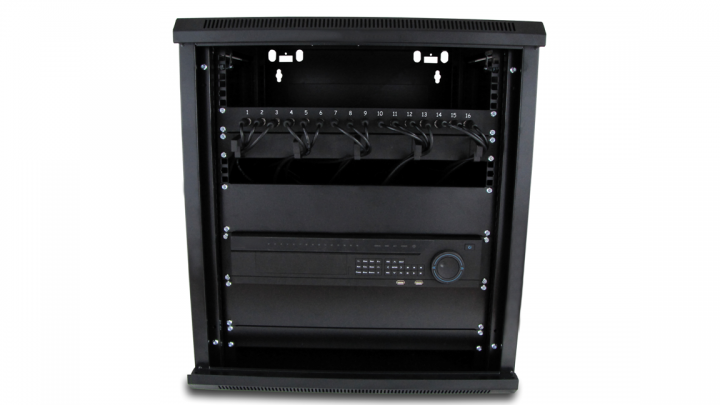

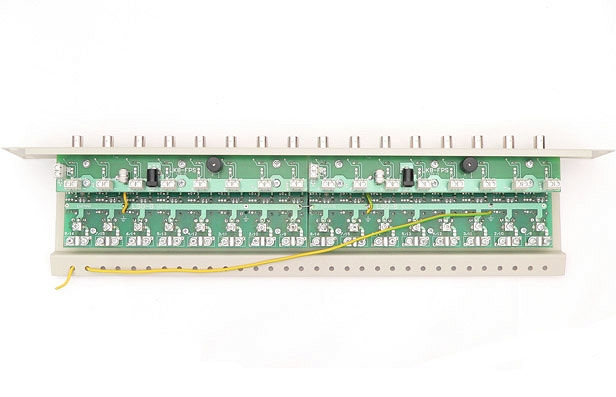

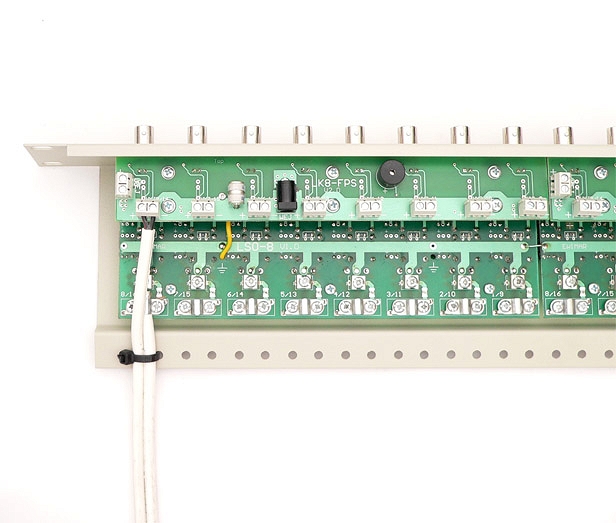

Rack mount 1U housing. 16 Video channels. Build in Video balun for each channel. Ground loop separation for all channels. 16 channels power distributor. Visual and sound short circuit indication. 3-stage surge protection. Special holes for cable tie. Precision BNC connectors.

Categorie:

Descriere

Tecnical Specifications:
Video channels
 16
Method of attachment
 RACK 19”, 1U
Impedance for coaxial cable
 75Ohm
Maximum cable lenght
 300m for color video signal, 500m for black-white video signal
Frequency range 20Hz~10MHz
Separation 600V
Insulation resistance
 100MOhm
Attenuation
 0,5dB
Stages of surge protection
 PCB electrodes, gas tube, transient diode
Discharge voltage
 75V, transil 8,2V
Discharge current
 2x 10kA, transil: 57A
Capacity protection circuit
 No more than 50pF
Power supply channels
 16
