LKTO-8R-FPS – Protecție la descărcări electrice Analogic – 8 canale (cablu UTP si coaxial)

8-channel Video surge protection POWER SUPPORT

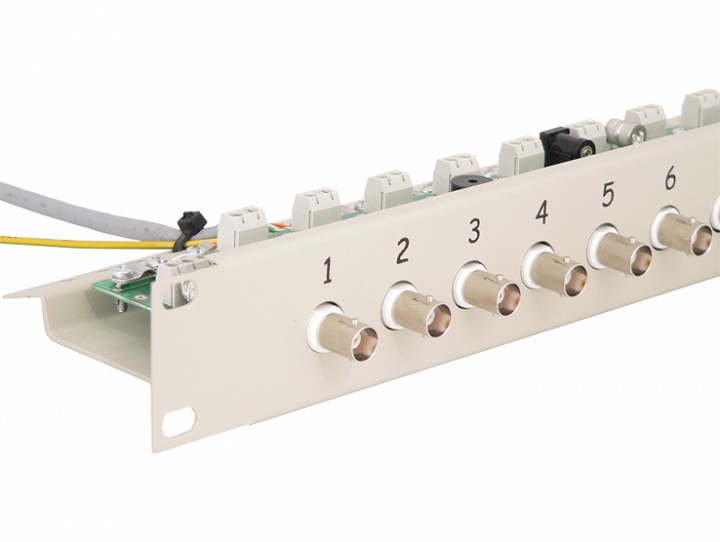

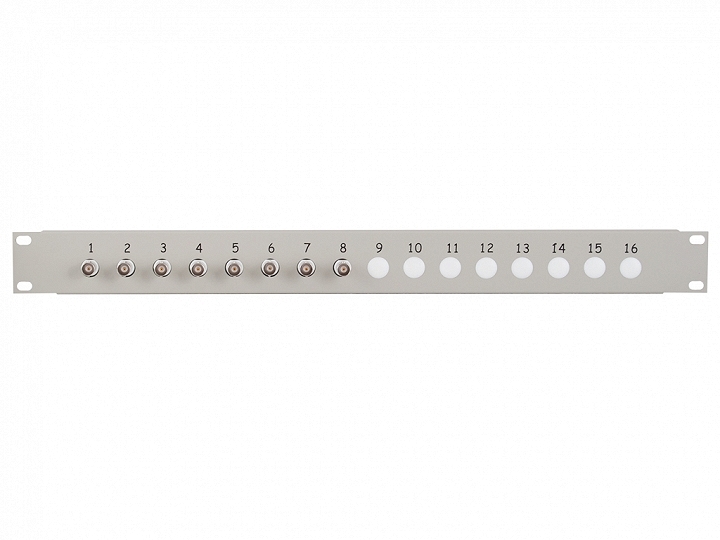

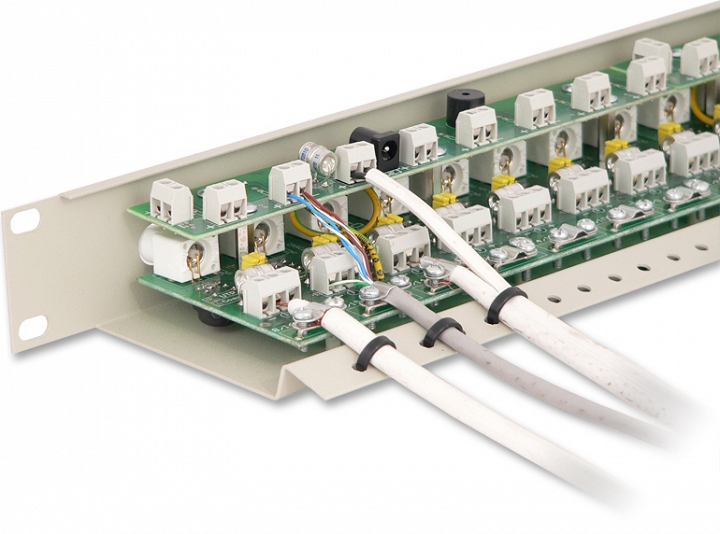

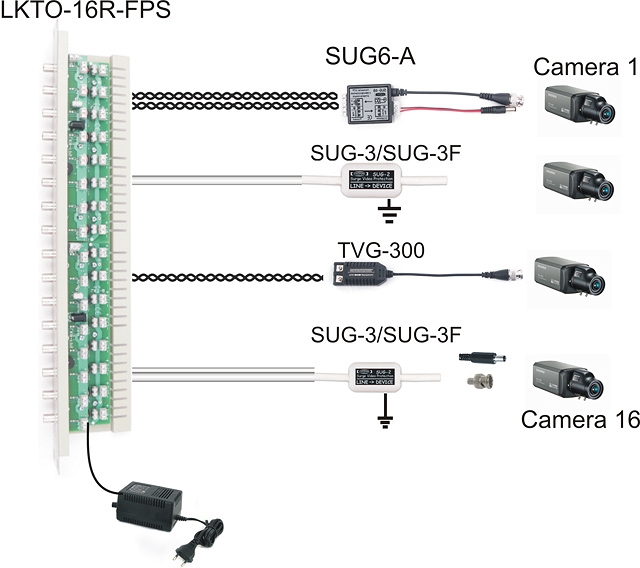

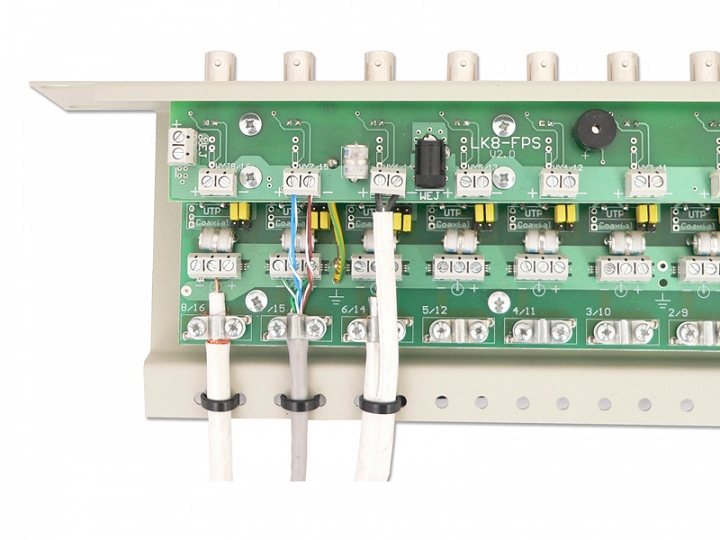

Rack mount 1U housing. 8 Video channels. Universal input for twisted pair and coaxial cable. 3-stage surge protection. Easy to coaxial cable connection. Special holes for cable tie. Precision BNC connectors. Mount in RACK 19” version LKTO-8R / Freestanding LKTO-8. Power support with 12V or 24V for 8 cameras.

Categorie:

Descriere

Technical Specifications:
Parameter Value
Video Channels 16
Video output BNC 75 Ohm, precision CNC
Impedance for coaxial cable 75 Ohm
Impedance for UTP twisted pair 110 Ohm
Frequency range 0-10 MHz coaxial cable,
0-8Mhz UTP
Attenuation for coaxial cable No more than 0.3 dB
Attenuation for UTP twisted pair No more than 0.5 dB
Capacity protection circuit No more than 50pF

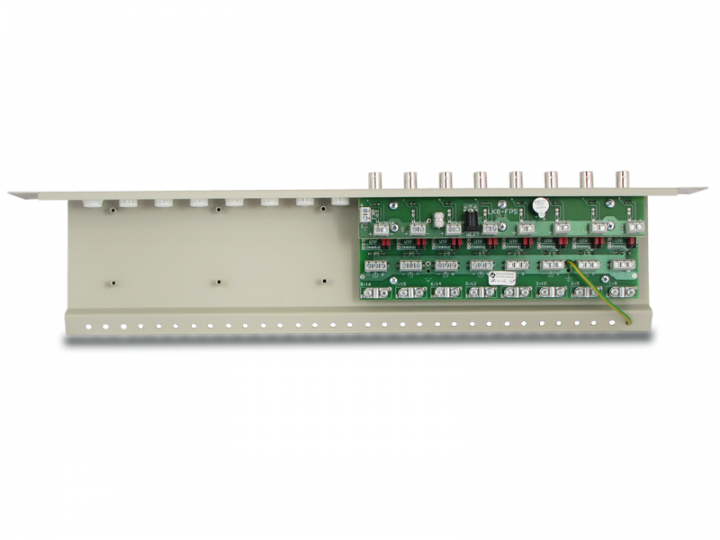

Stages of surge protection  PCB electrodes, gas tube, transient diode
Discharge Current 10kA gas tube,  57A transient
Discharge voltage 75V gas tube, 8.2 V transient
Response time 10us
Max protection 4kV

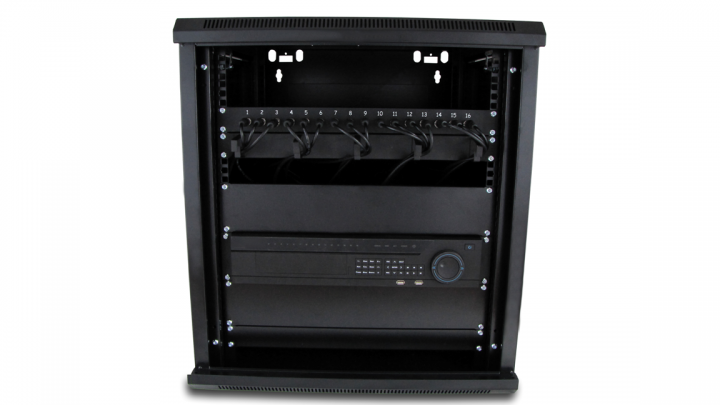

Dimension 1U rack 19″
