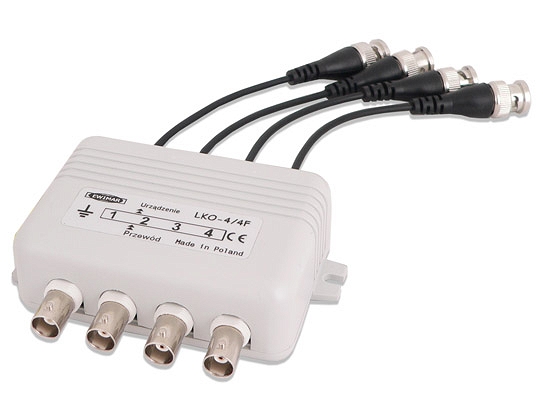

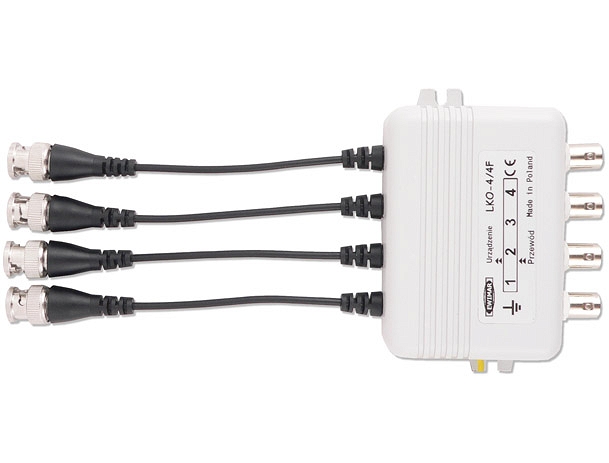

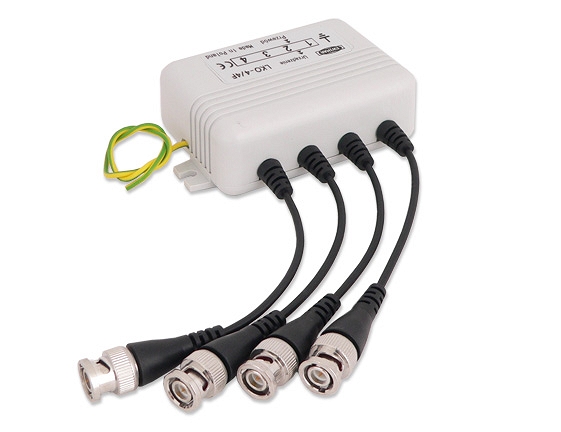

4-channels Surge Protection with BNC connrctors
Wall mount / freestanding housing. 4 Video channels. Female BNC / male BNC connectors. 3-level surge protection. Precision BNC connectors. Drain the load to the ground. Input: BNC connector. Output: BNC connector – LKO-4. Output: Free BNC connector – LKO-4F
| Technical specification: | |
| Impedance |
75 Ohm |
| Attenuation | 0,5dB |
| Stage of surge protection | 3 – PCB electrodes, gas tube, transient diode |
| Frequency range | 10 MHz |
| Circuit protection | No more than 30pF |
| Discharge current | 10kA gas tube, 57A transient |
| Discharge voltage | 75V gas tube, 8.2 V transient |
