Descriere
| Technical Specification: | |
| Impedance | 75 Ohm |
| Connector input (Line) |
Socket BNC |
| Connector output (Device) |
Wire with male BNC |
| Frequency response |
100 MHz |
| Attenuation | 0.05dB |

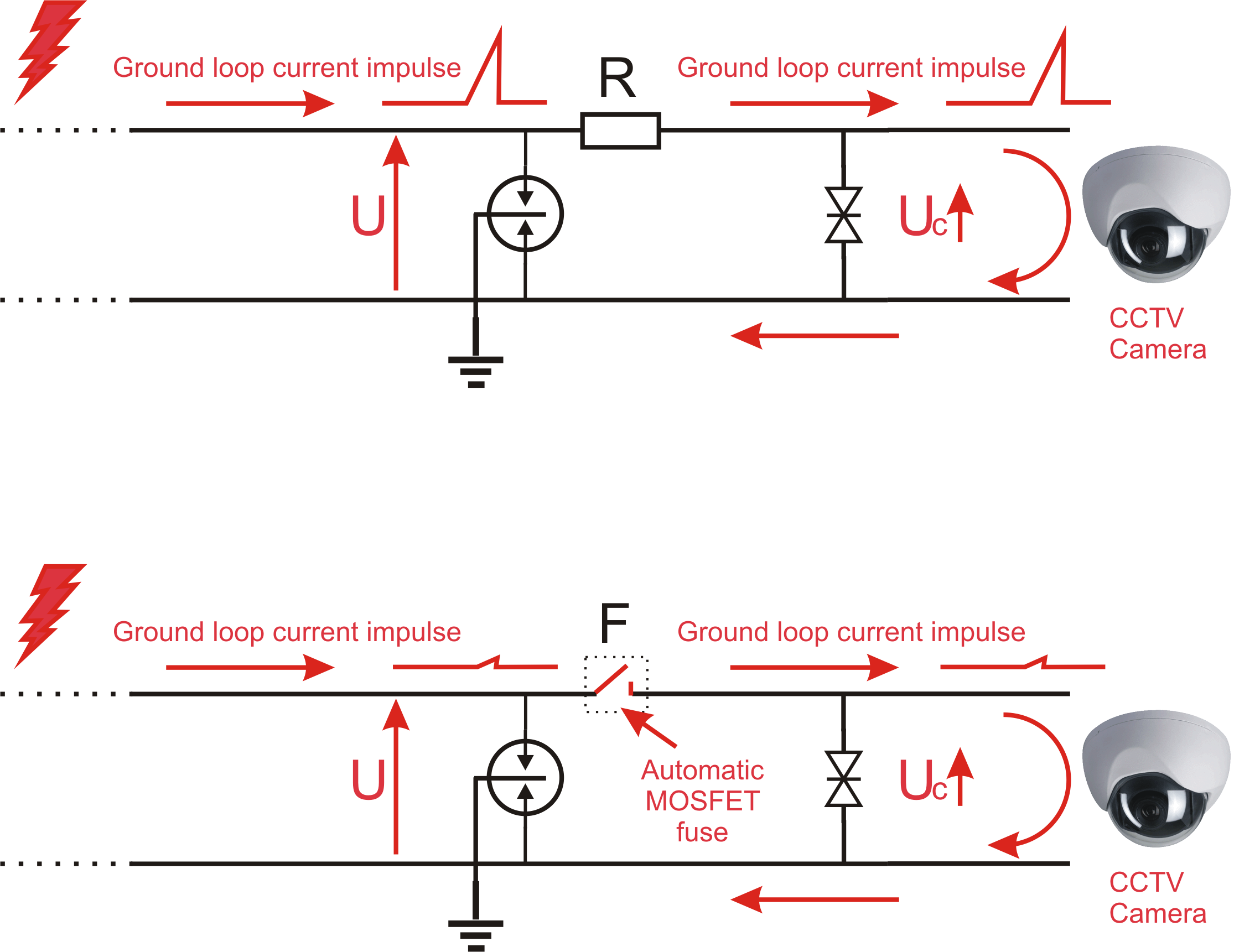

| Protection | 3 – Air ionizing, gas tube, fuse MOSFET |
| Protect line-ground |
Gas tube: 90V, 2x10kA @ 8/20uS |
| Protect line-line |
Transcient bridge 6V, 100A @ 8/20uS |
| Max level overvoltage |
4kV |
| Capacity circuit protection |
1~2pF |
