Descriere

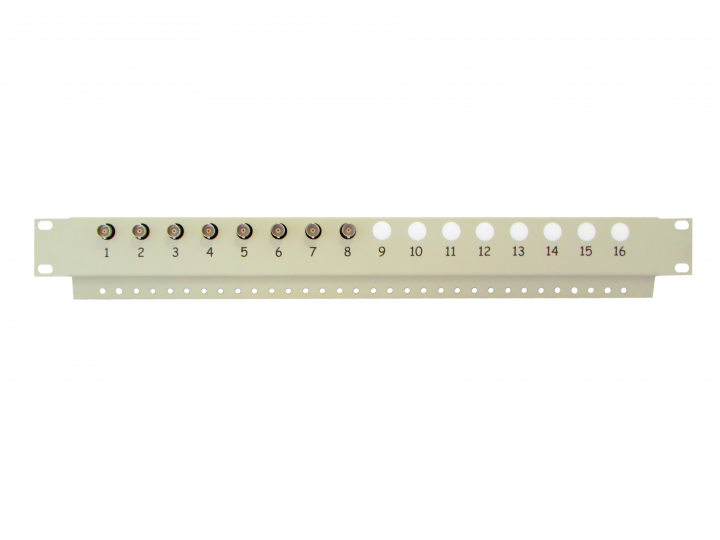

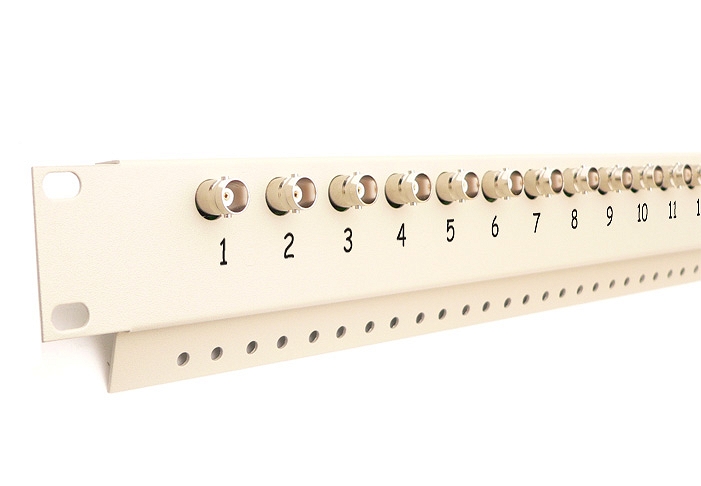

FKT-8-FPS is 8-channel patch panel mount RACK 19″ cabinet , contain passive converter BNC to UTP, contain in module FPS. Panel change impedance BNC coxial cable to UTP twisted pair.

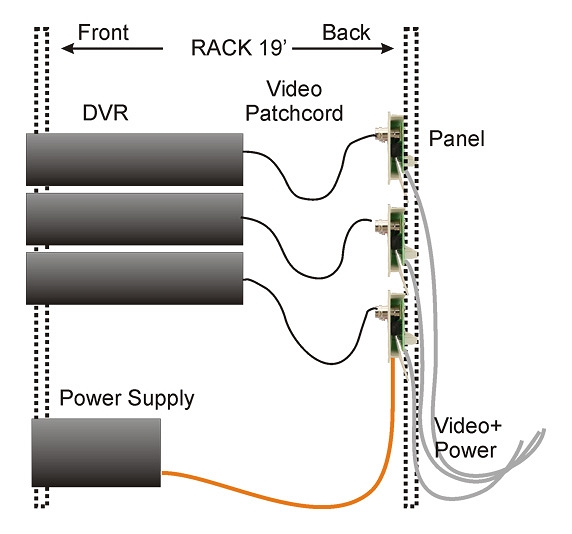

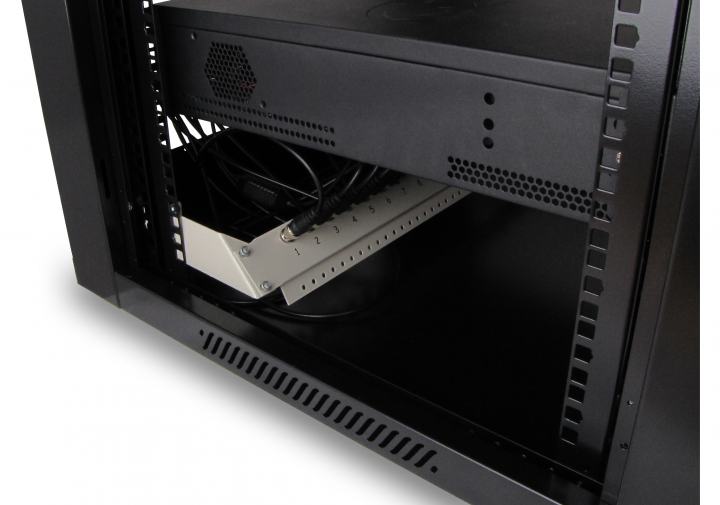

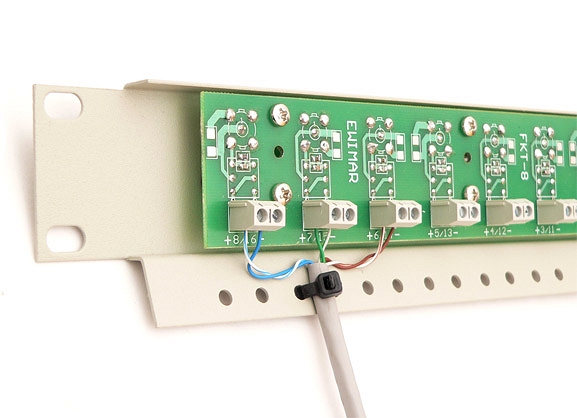

The housing panel is equipped with special holes for cable ties that prevent breaking of wires even with considerable force. The signal is output using a BNC patch cords to receiving devices, such as DVRs, monitors, and matrix switchers. The depth of the panel is very small, is mount in 1U RACK cabinet.

Built- in high frequency filter compensates for losses in the lines, which improves quality.

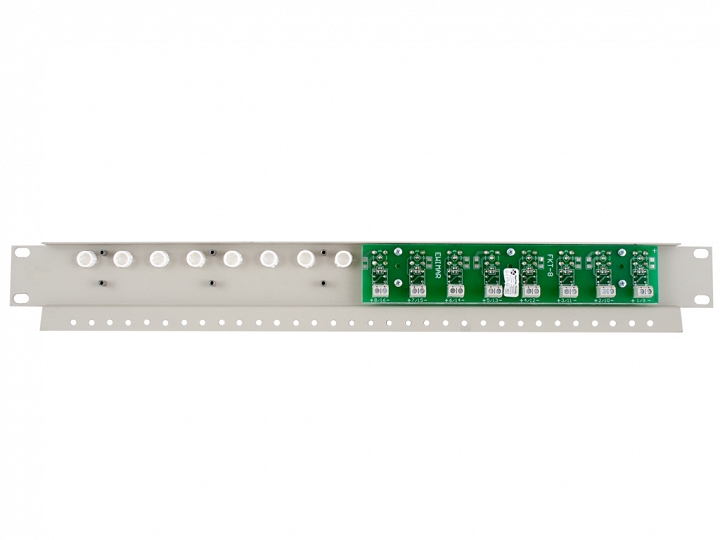

Panel include 8- channel camera power distributor FPS – provides 8 independents power outputs, protects from short circuit and lightnings. It is equipped on optical signal of power supply to each channels and buzzer signaling of short circuit on any of them.
