Characteristic

RAIS MEMO is a modern and original color videodoorphone designed for single family homes based on the 2-wire system connections.

The inner panel (monitor):

• ultra slim, handset free, speakerphone
• color TFT-LCD 7″
• high resolution image
• touch screen monitor and panel
• OSD menu in Polish and English
• internal memory that allows you to record images from an outdoor camera
• jack for Micro SD memory cards with a capacity of maximum 32GB (card not included)
• saving images in manual and automatic
• smooth adjustment of the monitor parameters (brightness and color, and volume and tone)
• 20 ring tones to choose from
• preview of what is happening in the field of view of the camera without the call from the outdoor panel
• intercom function after using an additional monitor
• 1 central power throughout the system
• power from the power supply for DIN rail DC 20-28V
• expandable by up to 3 monitors
• dimensions: 225 x 131 x 18 mm

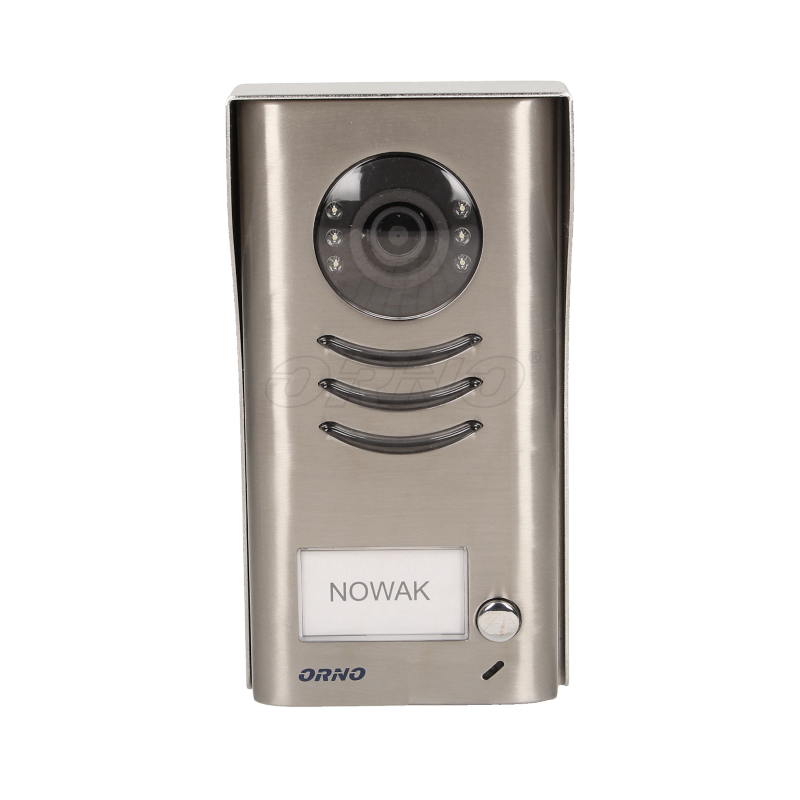

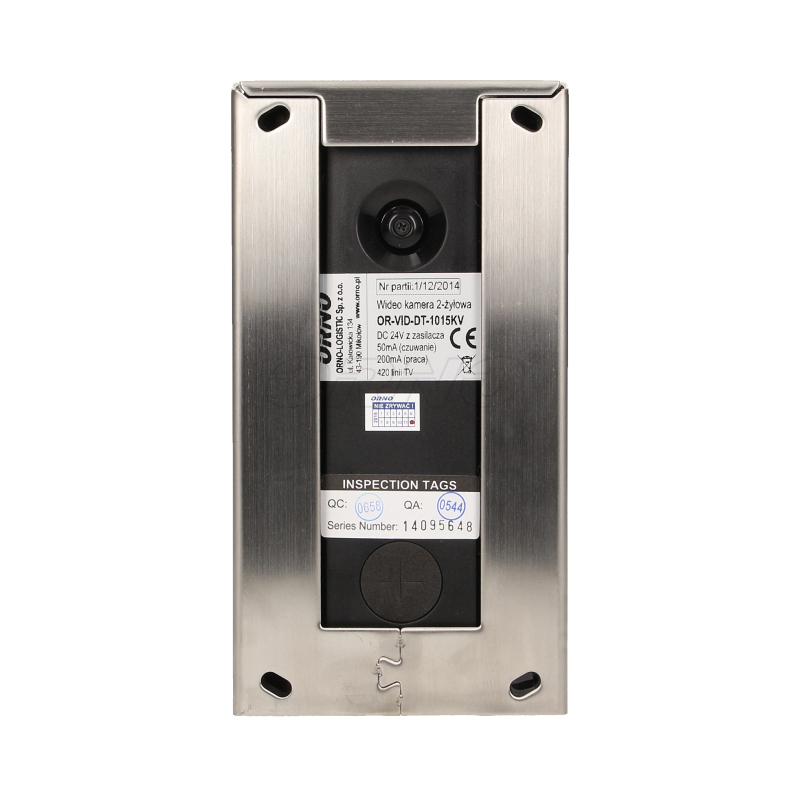

Outdoor camera:

• CCD color camera
• adjustable camera vertically (up and down)
• vandal-proof housing made of stainless steel, resistant to the harmful effects of weather conditions
• surface mounting

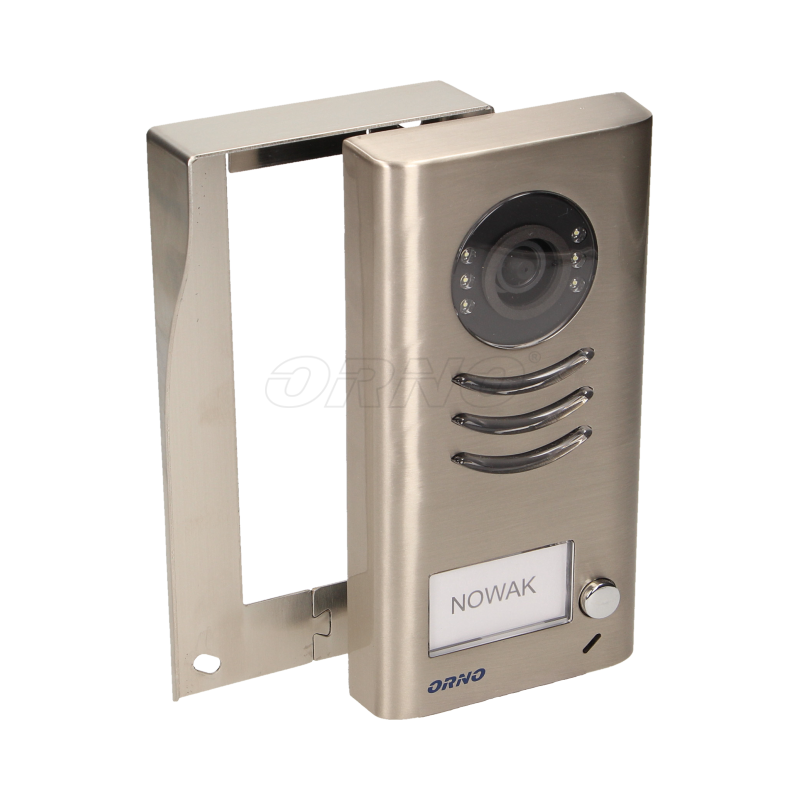

• protective roof included
• lighting super-bright LEDs enable night vision
• backlit place name
• electric strike with constant voltage of 12V and a current consumption of less than 250 mA does not requires additional power supply
• the possibility of extension for a maximum of 1 unit or 3 (after OR_VID-DT-1015MS) and 2 CCTV cameras
• dimensions: 90 x 176 x 23 mm

RAIS MEMO videodoorphone consists of:

• outdoor camera – 1 pc.
• protective roof – 1 pc.
• monitor – 1 pc.
• bracket for mounting the monitor – 1 pc.
• external power supply for DIN rail 20-28V DC – 1 pc.
