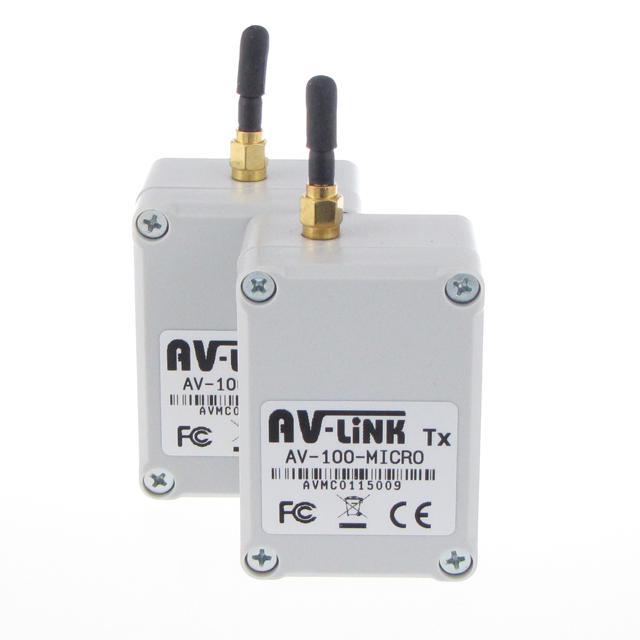

Technical specification:
| No. | Parameter | Value |
| 1 | Video channels |
UTP twisted pair: 1 x 1000hm
Coaxial cable: 1 x 75Ohm |
| 2 | Audio channels |
1 x 2Vp-p |
| 3 | Radio channel |
1st channel : 5470MHz 2nd channel : 5760MHz 3td channel : 5780MHz 4th channel : 5800MHz 5th channel : 5820MHz 6th channel : 5840MHz 7th channel : 5860MHz |
| 4 | Antenna | Omnidrectional, passive |
| 5 | Receiver sensitivity | -85dB |
| 6 | Transmitter power | 25mW, 14dBm |
| 7 | Deviations for Video (at 10KHz signal) | 4MHz |
| 8 | Frequency control | Synteza PLL |
| 9 | Work temperature | -20°C ~ 40°C |
| 10 | Hermetic class | IP65 |
| 11 | A/V modulation | FM |
| 12 | Frequency range of Video signal | 50Hz ~ 5.5MHz |
| 13 | Frequency range of Audio signal | 50Hz~20kHz |
| 14 | Power | 9~13.5VDC |
| 15 | Current consumption | Transmitter: 300mA @ 12VDC Receiver: 120mA @ 12VDC |
| 16 | Bracket | wall, adjustable |
